The longitudinal strength of the container is safeguarded by observing the aforementioned stowage rule. A calculated check is therefore not necessary.

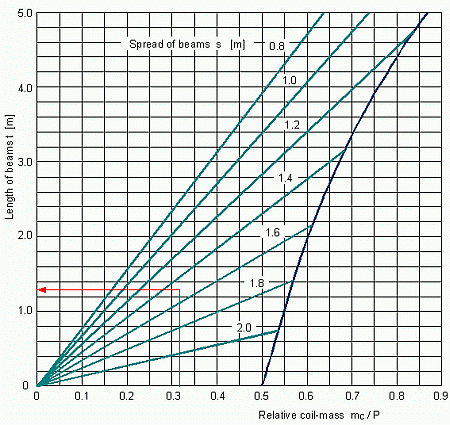

Figure 13: Diagram for the determination of necessary bedding dimensions
|
|
||
| 6.2.1 Checking transverse and longitudinal loads to the container | |||
|
|||
| The transversely stowed coils rest on longitudinal beams with a spread of = 1.50 m. Using this, the diagram in Figure 13 provides a minimum length of the beams of t = 1.30 m with the entry mC/P = 0.319. This requirement is met with t = 1.40 m. The longitudinal strength of the container is safeguarded by observing the aforementioned stowage rule. A calculated check is therefore not necessary. Figure 13: Diagram for the determination of necessary bedding dimensions |
|||
|
|
|
|
||
|
||
|
||
